How to Read Aluminum Sheet Specifications for Thickness and Tolerance

Start with the number that actually controls your process

When operators look at aluminum sheet specifications, the first mistake is treating the listed thickness as the real, exact thickness of every point on the sheet. It is not. The nominal thickness is the target size the mill is producing to. The tolerance tells you how far the actual sheet is allowed to vary above or below that target. If you skip that second part, you can end up with fit-up problems, unstable forming, poor welding consistency, or parts that suddenly fail inspection even though the material “looked right” on the label.

So when reading aluminum sheet specifications, do not stop at “2.0 mm” or “3.0 mm.” Read it as a full line item: alloy, temper, thickness, width, applicable standard, and tolerance condition. That is the package that determines whether the sheet will run cleanly in your equipment.

Check whether the thickness is nominal, minimum, or actual measured value

These three get mixed up all the time on the shop floor.

• Nominal thickness is the ordered size, such as 1.5 mm.
• Minimum thickness is the lowest acceptable value after applying tolerance.
• Actual thickness is what you read with a micrometer at a specific point.

If your bending program, roller gap, or press setup was built around nominal thickness, but the job really depends on minimum guaranteed thickness, your settings may be off before production even starts. In thin sheet work, a small deviation can change springback and edge quality more than people expect.

Find the standard before you judge the tolerance

Tolerance means nothing by itself unless you know which standard governs it. The same thickness can be acceptable under one document and out of range under another. For operators, the practical rule is simple: look for the standard on the mill test certificate, purchase order, packing label, or internal material release sheet. In international supply chains, you may see ASTM, EN, JIS, GB, DIN, or AISI references elsewhere in the same business, but the actual acceptance check still has to follow the standard specified for that material.

Do not compare one supplier’s sheet against another supplier’s tolerance table unless both are working to the same requirement. That is a common source of unnecessary rejection.

Read the tolerance line carefully, especially the sign

A tolerance can be written in several ways: plus/minus, minimum only, or asymmetric. For example, a sheet might allow a smaller negative deviation than positive deviation, or it may be controlled mainly on the minus side because under-thickness creates the bigger risk. Operators should not assume tolerances are always symmetrical.

This matters in real work:

• If the sheet is too thin, load-bearing performance and joining reliability can drop.
• If it is too thick, the part may not fit tooling, slots, folded seams, or stacked assemblies.
• If variation is wide across the sheet, you may get inconsistent forming from one blank to the next.

Measure in the right place, not just anywhere

A thickness reading is only useful if the measuring point matches the inspection rule. Edges can behave differently from the center. Coils and cut sheets can also show variation across the width. If your internal check only uses one quick reading near the corner, you may miss the area that causes the problem during stamping or fitting.

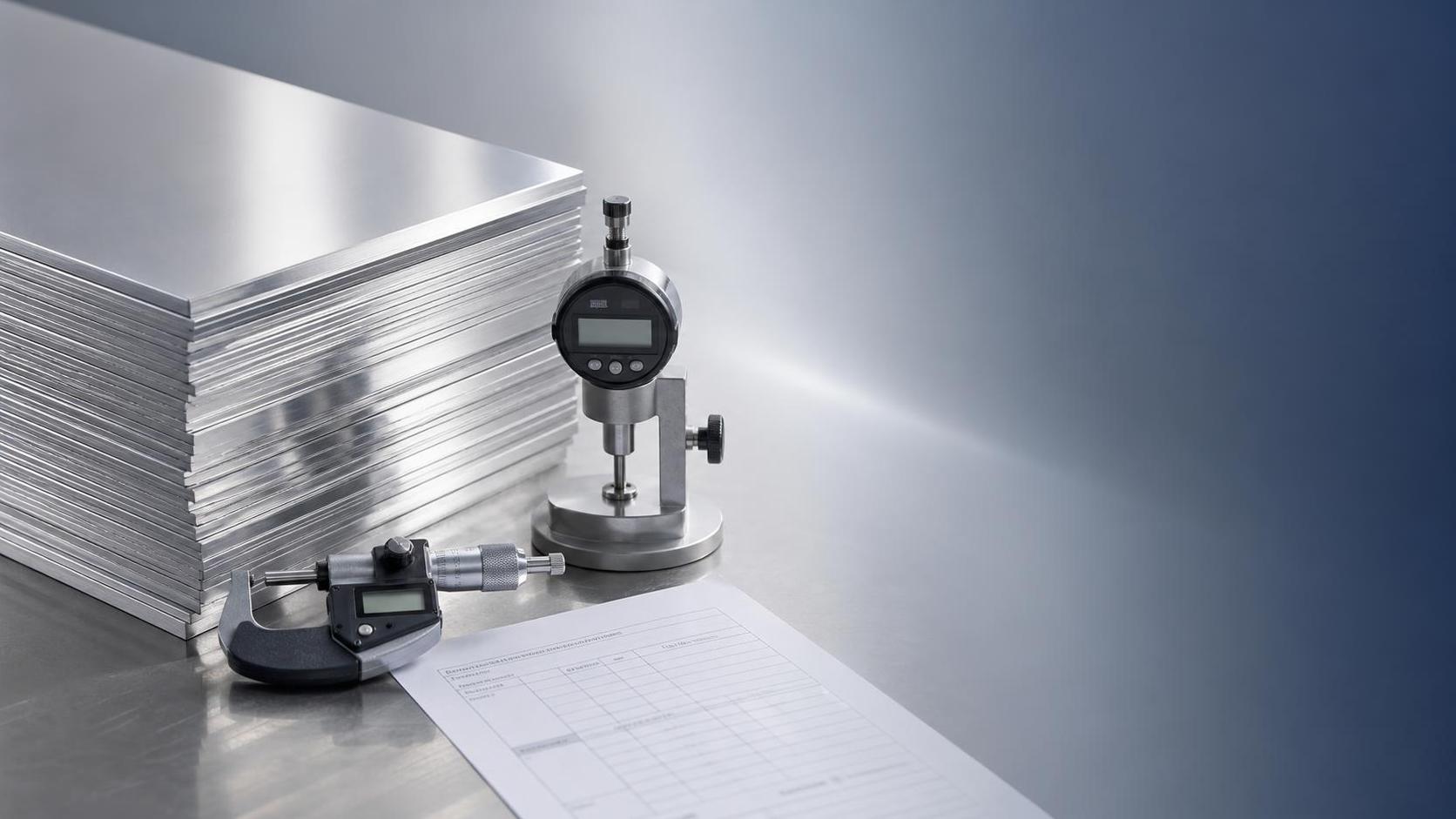

A practical routine is to check several points across the width and along the length, then compare those readings with the applicable tolerance rule. Use a calibrated micrometer or thickness gauge appropriate for the material range. Dirty anvils, burrs, oil film, or damaged edges can distort readings, so wipe the contact area and avoid measuring directly on a deformed cut edge.

Do not separate thickness from width, flatness, and temper

Operators often focus on thickness because it is easy to measure, but the sheet may still run badly if the width, flatness, or temper is wrong. A sheet within thickness tolerance can still cause feed issues, unstable punching, or surface marking if it arrives with poor shape control or a temper that does not match the forming operation.

That is why good aluminum sheet specifications are read as a set, not as one number. If the drawing or process sheet demands tight bend consistency, the temper and thickness variation matter together. If the job is a trimmed panel or cover plate, width tolerance may be just as important as thickness.

Use a quick check table before releasing material to production

Watch for conversion mistakes between gauge, mm, and inch

This is a recurring problem in mixed-market purchasing. Gauge numbers are not a universal thickness language, and different material systems can use different gauge references. If the job document says gauge but your machine setup sheet uses millimeters, convert from the governing standard or purchase specification, not from memory. A casual conversion can put the wrong material on the line even when everyone believes they are talking about the same size.

Treat coating and surface condition as a separate check

For aluminum sheet, the thickness specification generally refers to the base material according to the governing product standard, but surface condition still affects handling, joining, and appearance. If your operation also deals with coated metal in the same workshop, keep those checks separate. For example, teams that source both aluminum sheet and Galvanized sheets often work from similar release documents, but galvanized material adds coating-related fields such as zinc coating mass, spangle, hardness, and surface treatment. Those details matter for corrosion resistance and forming, yet they should not be confused with how aluminum sheet thickness tolerance is read.

Know the failure pattern before you blame the supplier

If parts are cracking, warping, or not seating correctly, thickness may be part of the issue, but not always the whole issue. Look at the pattern:

• Random failures across a coil may point to variation in actual thickness or shape.
• Consistent failure at one bend line may be more related to temper, bend radius, or tool wear.
• Assembly interference usually means you should review both thickness and width together.

That diagnosis step saves time. It also keeps you from rejecting material for the wrong reason.

The practical reading order

On the floor, the fastest reliable method is this: read the alloy and temper, confirm nominal thickness, locate the governing standard, read the tolerance expression exactly as written, then measure at the required points with the right tool. After that, check width and sheet condition against the job requirement before releasing the lot.

That sequence is what turns aluminum sheet specifications from paperwork into usable process control. If one field is missing, stop there and resolve that gap before the material reaches cutting, bending, or assembly. It is cheaper to pause at incoming inspection than to discover the mismatch after scrap starts piling up.
